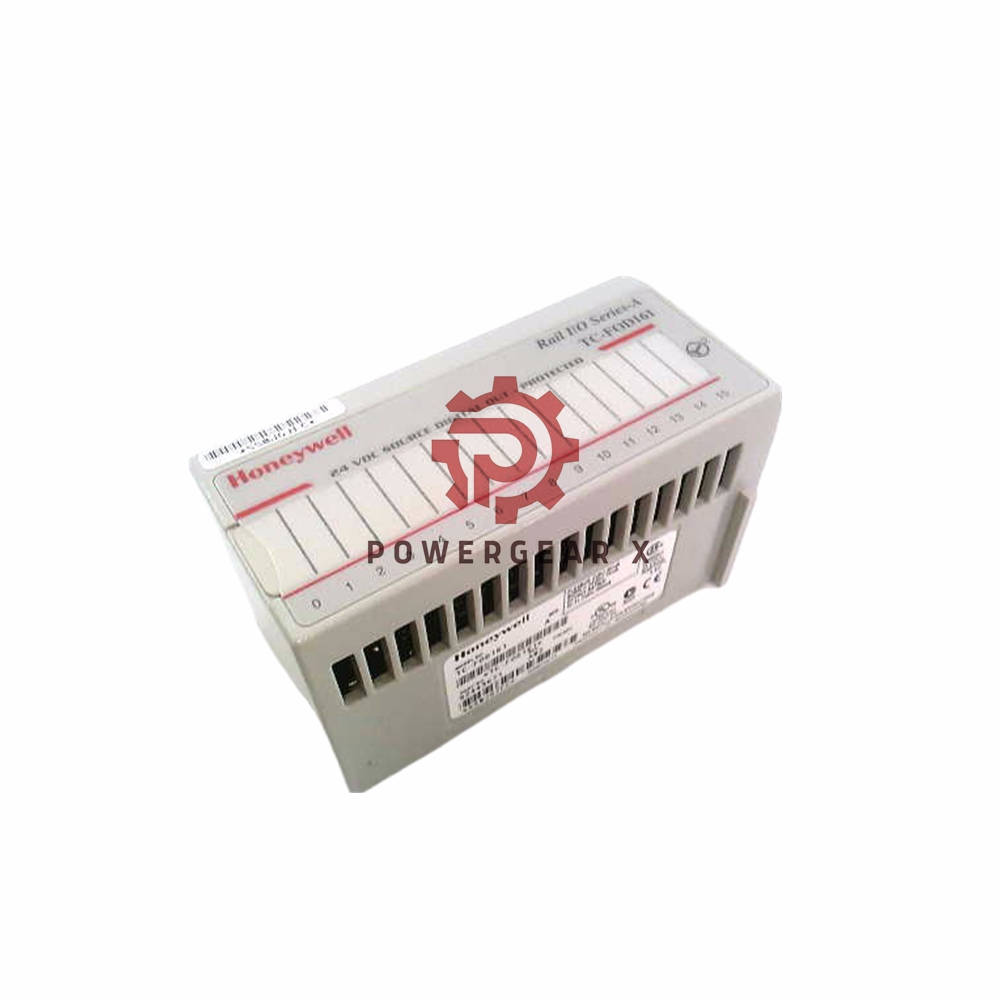

TC-FOD161 Honeywell 24 Vdc Source Digital Output

Overview

The TC-FOD161 is a 24 Vdc Source Digital Output module designed for use in industrial automation systems. It offers reliable control and protection with a range of features tailored to meet the needs of various applications. This module is equipped with 16 channels, ensuring efficient operation and ease of integration into DIN-rail mounted systems.

Technical Specifications:

• Module Type: TC-FOD161, 24 Vdc Source Digital Output Module.
• Brand: Honeyewell
• Model Suffix Meaning: “FOD” denotes “Field Output Device,” while “161” refers to the 16 channels.
• Voltage Rating: 19.2-31.2V dc (with 5% ac ripple).
• ON-State Voltage: 10V dc minimum, 24V dc nominal, 31.2V dc maximum.
• ON-State Current: 1mA minimum per channel, 500mA maximum per channel.
• OFF-State Voltage Drop: 0.5V dc maximum.
• OFF-State Leakage: 0.5mA maximum.
• Flexbus Current: 80mA maximum.
• Thermal Dissipation: 17 BTU/hr @ 31.2V dc.

Environmental Specifications:

• Operational Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Relative Humidity: 5% to 95% non-condensing.
• Vibration Resistance: Tested for 5g at 10-500Hz per IEC 68-2-6.
• Shock Resistance: Operating shock of 30g peak acceleration; non-operating shock of 50g peak acceleration.

Dimensions:

• Size: 69mm x 94mm x 80mm (2.72in x 3.7in x 3.20in).
• Wire Size: 12 gauge (4mm²) stranded maximum.
• Screw Torque: 4-7 inch-pounds.

FAQ:

Q: What is the maximum current per channel?
A: The maximum current per channel is 500mA.

Q: Can the TC-FOD161 be used in high-vibration environments?
A: Yes, it has been tested for resistance to 5g vibration at 10-500Hz.

Q: What is the maximum voltage rating for this module?
A: The maximum voltage rating is 31.2V dc.

For more detailed information, please check official datasheet: C200-introduction
