Velomitor CT Velocity Transducer | 190501-00-00-04

Overview

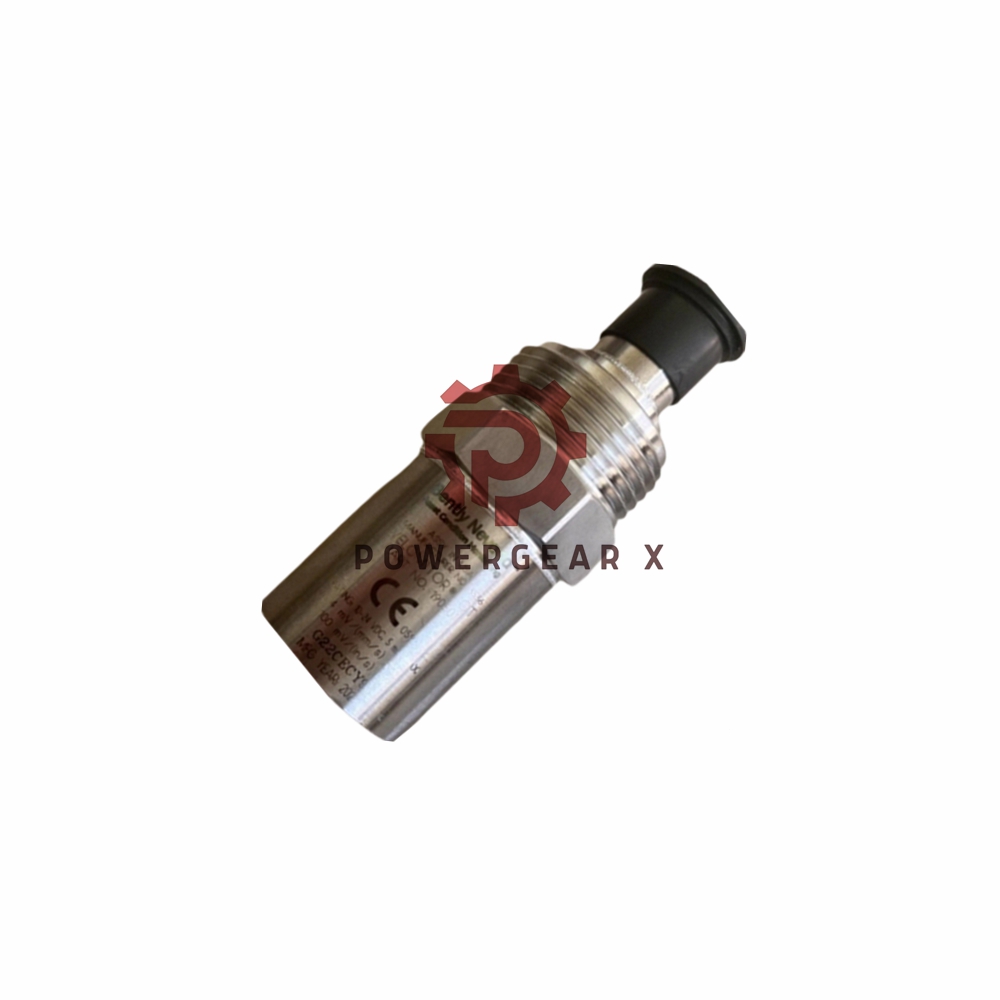

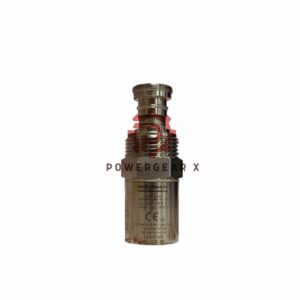

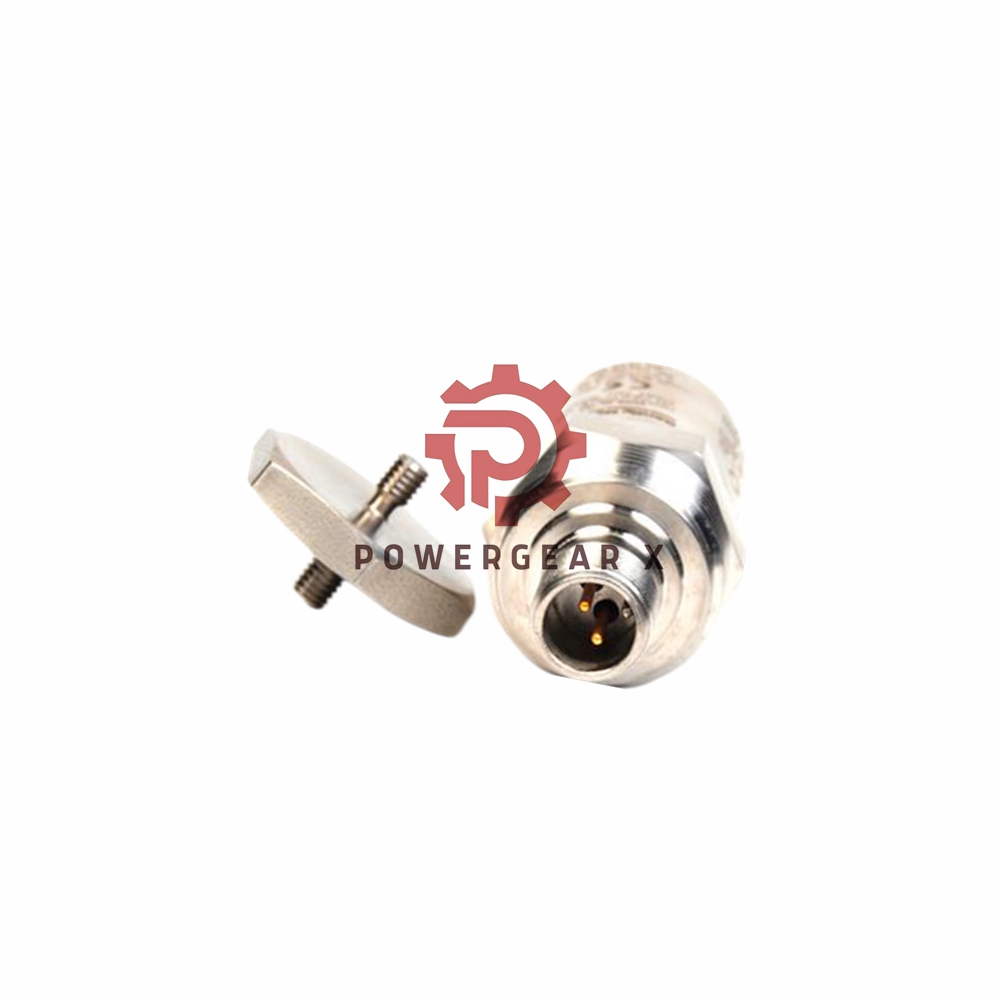

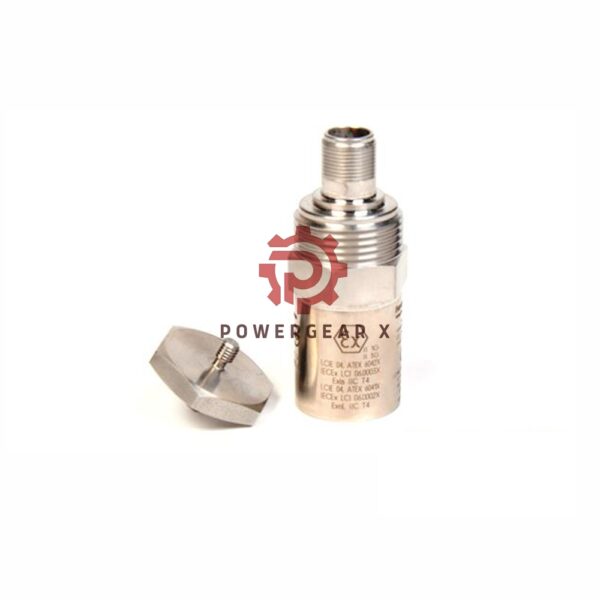

The Bently Nevada 190501-00-00-04 Velomitor CT Velocity Transducer is a high-performance device designed to measure velocity in a variety of industrial applications. Manufactured in the U.S.A., this transducer features a durable 316L stainless steel case and offers multiple agency approvals, making it suitable for critical environments.

Key Features:

• Mounting Surface: 33 mm diameter (1.3 in diameter) for easy integration into systems.
• Connector: MIL-C-5015 2-pin, 316L stainless steel, top-mounted for secure and reliable connection.
• Temperature Range: Can operate in extreme conditions with a storage temperature range of -40 °C to +100 °C and an operating temperature range of -40 °C to +85 °C.
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%, ensuring high precision.
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB and 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB for versatile performance across various frequency ranges.
• Velocity Range: 63.5 mm/s pk (2.5 in/s pk) suitable for high-speed monitoring.
• Transverse Response: Less than 5% of the axial sensitivity, ensuring accurate velocity readings.
• Resonant Frequency: Minimum of 9 kHz when mounted, except for quick disconnect options.
• Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) for secure attachment.

Technical Specifications:

• Brand: Bently Nevada
• Model: 190501-00-00-04 Velomitor CT Velocity Transducer
• Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
• Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Mounting Surface: 33 mm diameter (1.3 in diameter)
• Case Material: 316L stainless steel
• Weight: <297 g (10.5 oz.), typical
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc
• Dynamic Output Impedance: <400 Ω typical
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB

FAQ:

1. What is the temperature range for the Bently Nevada 190501 Velocity Transducer?
   • It operates between -40 °C to +85 °C (-40 °F to +185 °F).
2. What type of connector does this transducer use?
   • It uses a MIL-C-5015 2-pin connector, made of 316L stainless steel.
3. What is the sensitivity of the transducer?
   • The sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%.

Check official datasheet for more detailed information: 190501 Velomitor CT Transducer Datasheet
