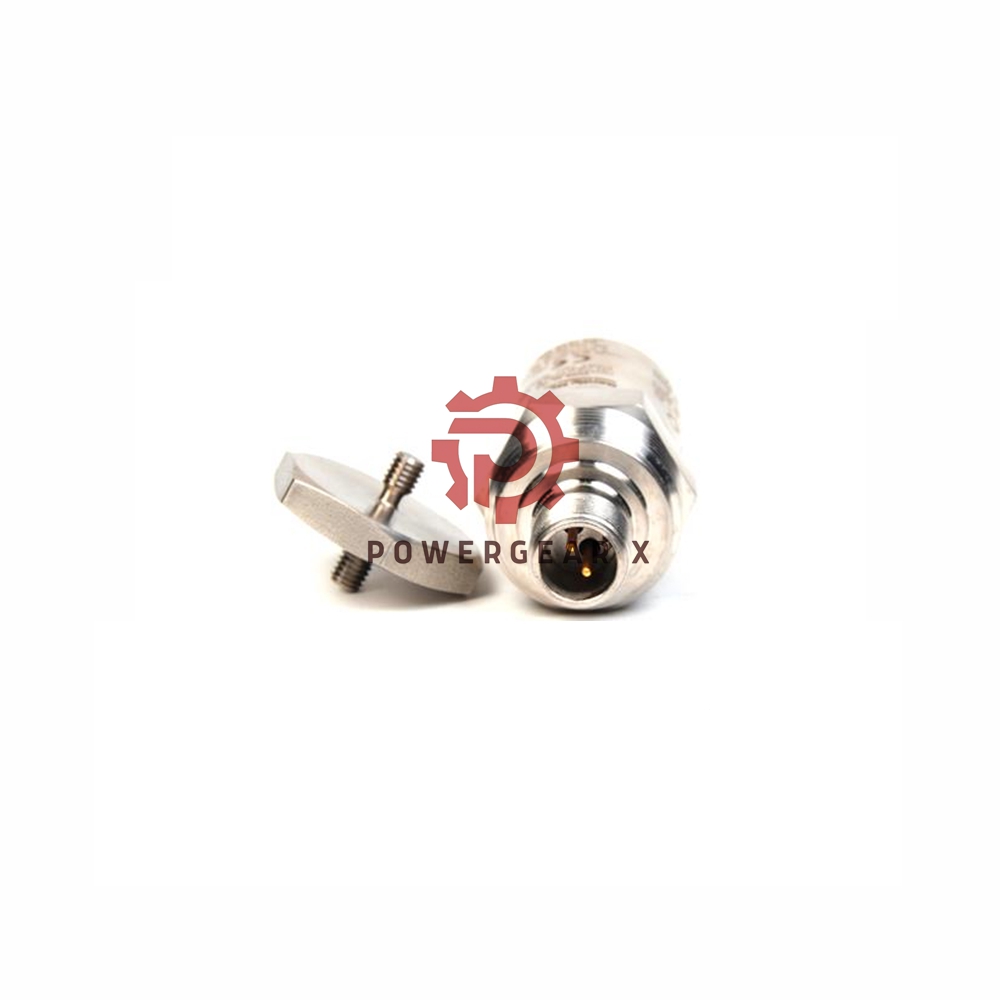

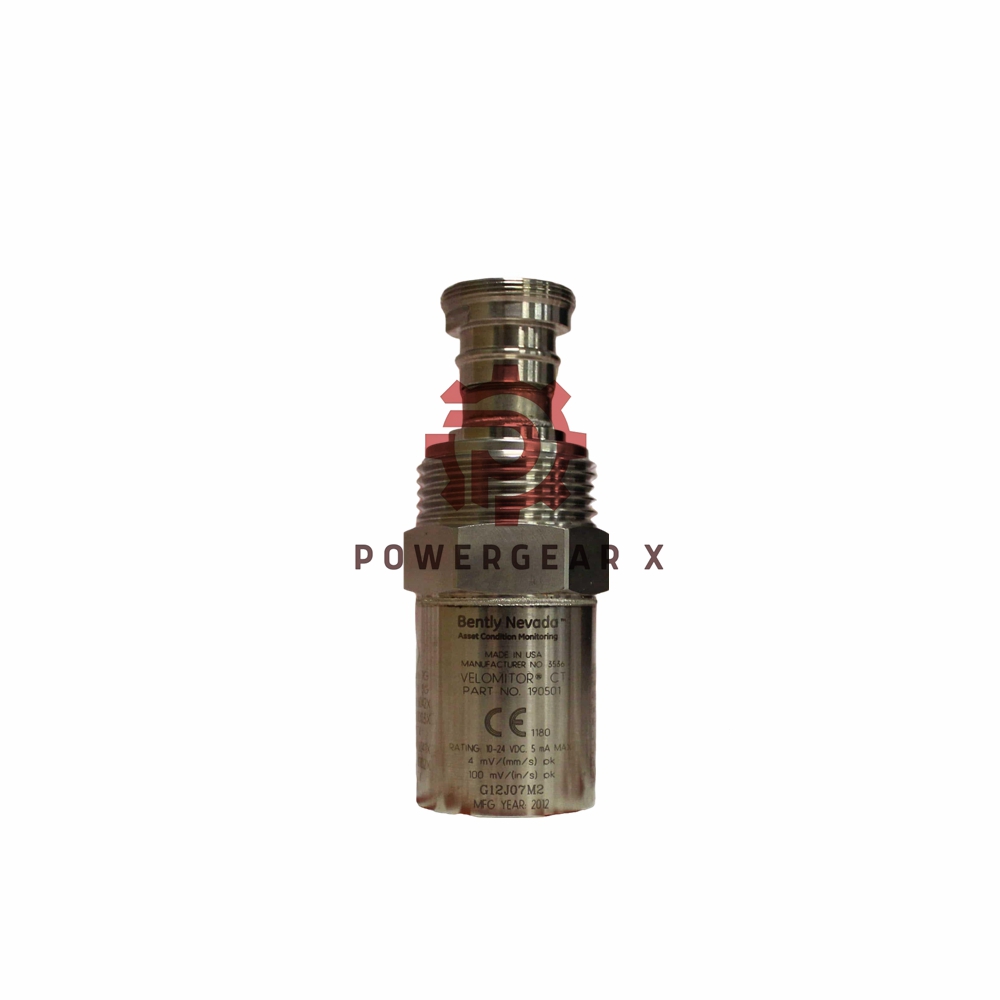

Velomitor CT Velocity Transducer | 190501-01-00-01

Overview:

The Bently Nevada 190501-01-00-01 Velomitor CT Velocity Transducer is a high-performance sensor for precise velocity measurement in a wide range of industrial applications. This device is engineered to withstand extreme temperatures and harsh environments, making it ideal for machinery monitoring and vibration analysis.

Technical Specifications:

• Manufacturer: Bently Nevada
• Model Number: 190501-01-00-01
• Product Type: Velomitor CT Velocity Transducer
• Country of Origin: Made in U.S.A
• Case Material: 316L Stainless Steel
• Height: 82 mm (3.2 in)
• Mounting Surface: 33 mm diameter (1.3 in)
• Temperature Range: Operating -40°C to +85°C (-40°F to +185°F), Storage -40°C to +100°C (-40°F to +212°F)
• Weight: 297 g (10.5 oz), typical
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB, 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
• Velocity Range: 63.5 mm/s pk (2.5 in/s pk)
• Transverse Response: Less than 5% of the axial sensitivity
• Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk)
• Resonant Frequency: 9 kHz, minimum (stud mounted, except quick disconnect)
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
• Dynamic Output Impedance: <400 Ω typical
• Broadband Amplitude: 0.229 mm/s (0.009 in/s) pk

Mounting & Connection:

• Connector: 2-pin MIL-C-5015 stainless steel, top-mounted.
• Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf)
• Polarity: Pin A is positive with respect to Pin B when velocity moves from base to top of the transducer.

FAQ:

• Q: What is the operating temperature range of the Velomitor CT Velocity Transducer?
  • A: The operating temperature range is -40°C to +85°C (-40°F to +185°F).
• Q: Can the transducer be mounted at any angle?
  • A: Yes, the transducer can be mounted at any orientation.
• Q: What is the sensitivity of the Velomitor CT?
  • A: The sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%.

Check official datasheet for more detailed information: 190501 Velomitor CT Transducer Datasheet
