X20CP1584 B&R X20 PLC CPU Module

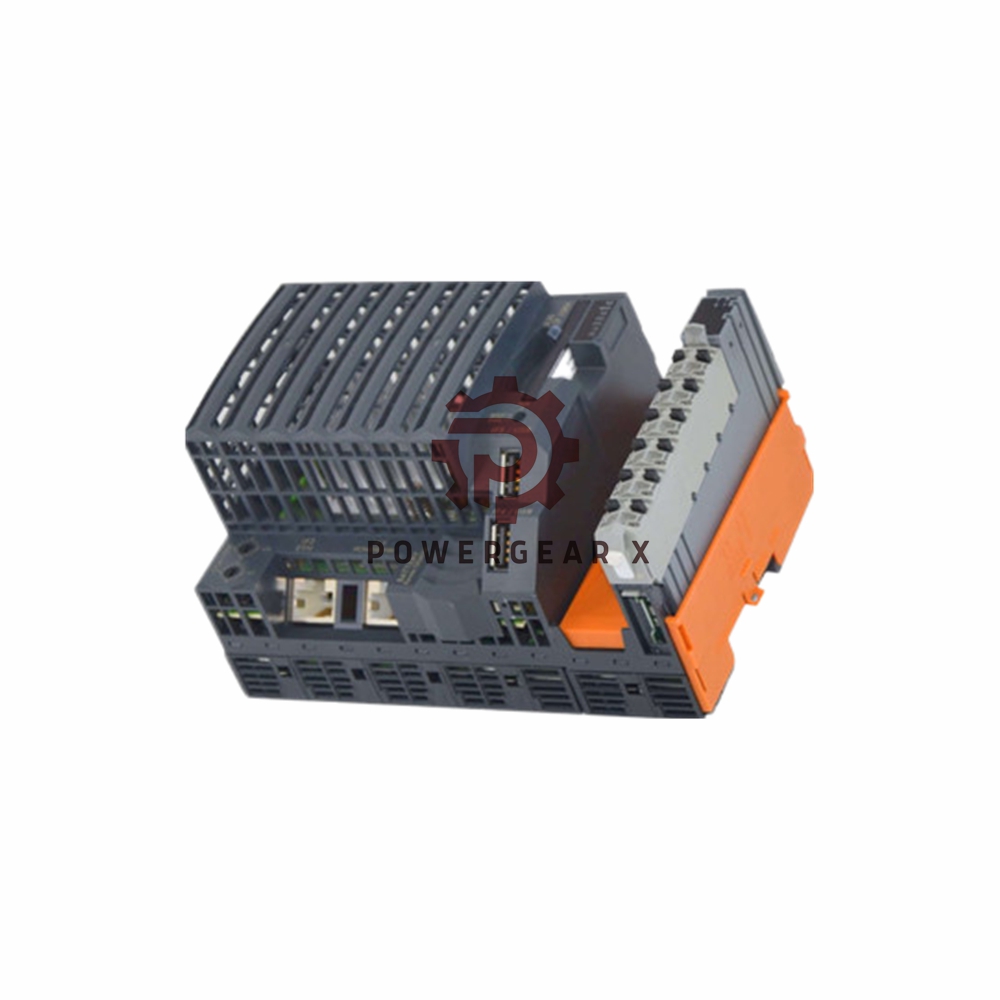

B&R X20CP1584 Controller Overview

The B&R X20CP1584 is a fanless, compact industrial controller equipped with a 600 MHz Intel Atom processor and 256 MB DDR2 SDRAM. Designed for performance and real-time processing, it integrates onboard Ethernet, USB, and POWERLINK connectivity, supporting enhanced network operations. This controller comes with a modular design, enabling the expansion of communication capabilities through an additional X20 communication module slot.

Interfaces

• Ethernet: 1x RJ45 port (10/100/1000 Mbit/s), Auto-MDI/MDIX.
• RS232: 1x terminal block (max 900 m distance).
• POWERLINK: 1x RJ45 port (100 Mbit/s).
• USB: 2x Type-A, max 0.5 A output per port.
• X2X Link: For fieldbus communication.

Technical Specifications

• Brand: B&R
• Model: X20CP1584
• Processor: Intel Atom E620T, 600 MHz
• RAM: 256 MB DDR2 SDRAM, 1 MB SRAM (user data)
• Cache: 24 kB (L1 data), 32 kB (L1 program), 512 kB (L2)
• Memory: CompactFlash slot (removable)
• Power Consumption: 8.6 W without interface module, 1.42 W for X2X Link
• Input Voltage: 24 VDC ±20%
• Operating Temperature: -25°C to 60°C (horizontal), -25°C to 50°C (vertical)
• Storage Temperature: -40°C to 85°C
• Dimensions: 150 mm (W), 99 mm (H), 85 mm (D)
• Weight: 400 g

Frequently Asked Questions (FAQ)

1. What is the processor in the X20CP1584?
The controller uses an Intel Atom E620T processor, clocked at 600 MHz.

2. Can the X20CP1584 be used in hazardous locations?
Yes, it is certified for ATEX Zone 2, Class I, Division 2.

3. How much memory does the controller have?
It comes with 256 MB DDR2 SDRAM and 1 MB SRAM for user data.

4. What kind of communication interfaces does the controller support?
The X20CP1584 supports Ethernet, RS232, POWERLINK, USB, and X2X Link.

5. Does the X20CP1584 support expansion?
Yes, it has 1 modular slot for communication modules.

6. What is the power supply requirement for this controller?
It requires 24 VDC with reverse polarity protection.

7. What is the operating temperature range?
The controller operates between -25°C to 60°C (horizontal mounting).

For more detailed information, please check official datasheet: X20CP1584
